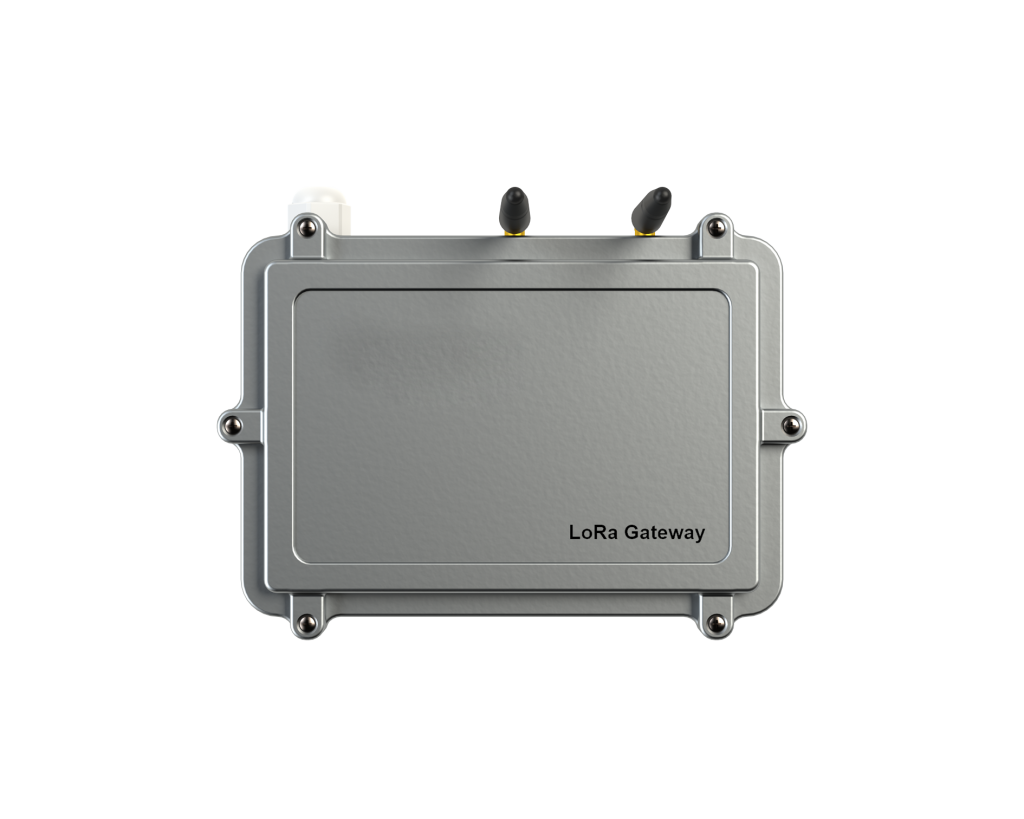

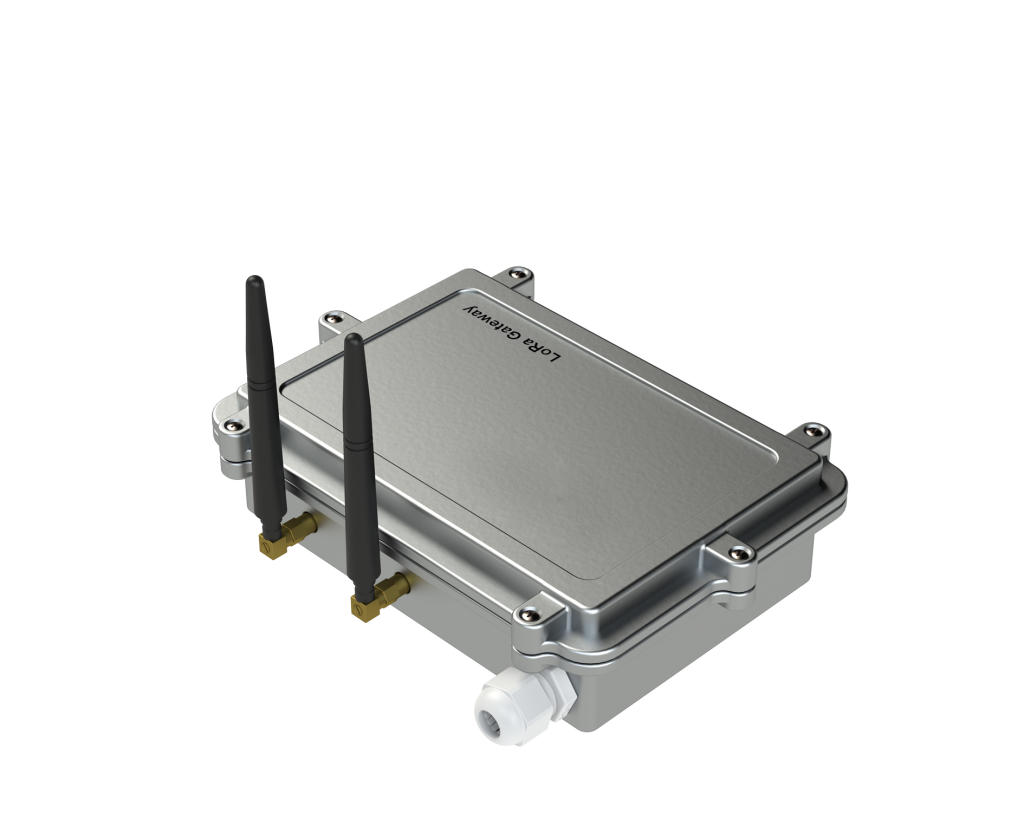

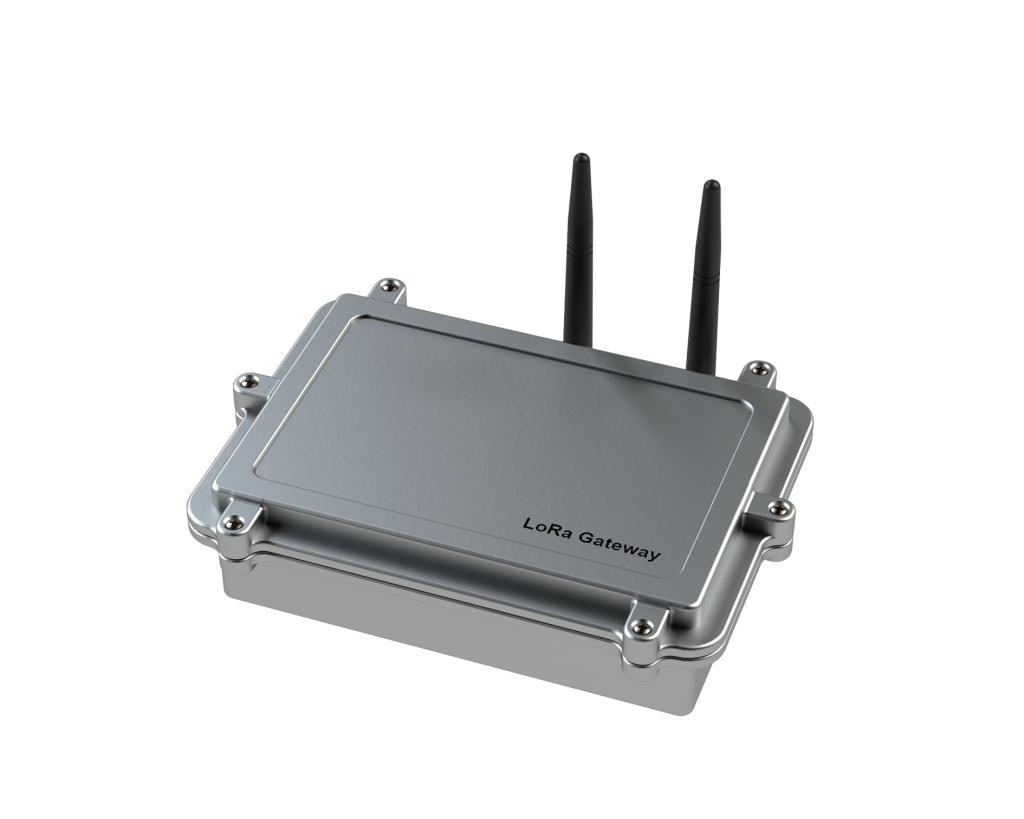

Collection Unit-Outdoor

General Features:
1. Gateway unit has 12-24V 2A External supply input.
2. There is 1 RS-485 communication port for local data transfer on the Gateway unit.
3. There is 1 relay dry contact output on the Gateway unit.
4. All settings related to the device can be made via the website without the need to make any settings on the Gateway unit.
5. There is internal memory on the Gateway unit to prevent data loss during power outages.
6. Gateway unit will be able to send location information automatically.
7. There is an internal embedded GSM communication unit, sim card slot, and external antenna output on the Gateway unit.
8. Gateway unit can operate with Ethernet, GSM, and Locally.
9. External high-gain GSM and RF Antennas can be attached.
10. RF Frequency is EU 868Mhz 8 Channels.
11. It allows data transfer up to 15 Km.
12. Supports LoRa Modulation and LoRaWAN protocols.
13. It has 2Mb internal memory.
14. Operating temperature is -40°C~+85°C.
15. Provides protection against dust and water with IP67 box.

Application Areas:
1. Application
2. Smart city
3. Smart Metering ( Water, Electric, Gas meter )
4. Agricultural Monitoring
5. Irrigation control
6. Internet of Things (IoT)
7. M2M
8. Wireless Sensors
9. Wireless Alarm and Security Systems

Technical Specifications:
1. Product Module: LoRaWan gateway
2. LoRa long range module technology
3. Half-duplex
4. Simultaneously receive LoRa packets
5. Dual digital Tx & Rx radio front-end
6. Dynamic data-rate adaptation (ADR)
7. Multi LoRa Spreading Factor
8. Maximum 10 channels
9. 8 x Multi SF LoRa channels (SF7 to SF12 with 125kHz Bandwidth)
10. 1 x LoRa channel (Bandwidth 125/250/500kHz)
11. 1 x FSK channel

Box Content:
1. Lora Gateway 1 piece
2. 12V 2A Adapter 1 piece
3. RF Antenna 1 piece
4. GSM Antenna 1 piece
5. Extended RF Antenna (optional) 1 piece
6. Extended GSM Antenna (optional) 1 piece
7. 3V6 Lithium Battery (Optional) 1 piece
8. IP65 Panel (Optional) 1 piece
9. 65W solar panel (Optional) 1 piece
10. 20Ah Battery (Optional) 1 piece
11. Solar Battery charger 1 piece
