Reduce Well Pump Electricity Costs by 50%: Esular Wireless Control System Review

Energy consumption of well pumps is one of the largest expense items for agricultural enterprises. Especially during the irrigation season, electricity bills bring significant burdens. For this reason, in this article, we will examine how esular wireless well control systems provide well pump electricity savings with real applications. First of all, let us state that automatic control systems offer the most effective solution for well pump electricity savings. As a result, a 30-50% reduction in energy costs becomes possible.

Why are Well Pump Electricity Savings Important in Traditional Well Systems?

In most agricultural enterprises, pumps are still turned on and off manually. However, for well pump electricity savings, this situation is both impractical and problematic in terms of energy efficiency. Here are the main causes of energy waste in traditional systems: Unnecessary Operating Times: First, the pump stays on longer than necessary. Because after irrigation is finished, turning off the pump is often forgotten or noticed with a delay. Incorrect Timing: Additionally, irrigation is performed during daytime hours at a high electricity tariff. However, by taking advantage of the night tariff, you can achieve electricity cost savings of 40-50%. Excessive Pressure and Power Consumption: Furthermore, pumps operating without pressure control consume more power than necessary. Therefore, energy waste increases when the system operates at a pressure higher than required. Dry Running Risks: Finally, when the well water level drops, the pump can run dry. This both damages the pump and wastes energy.

How to Achieve Well Pump Electricity Savings with Automatic Well Control?

Automatic well control systems manage your pump intelligently and eliminate unnecessary energy consumption. In this way, the solutions offered by the esular system for well pump electricity savings are as follows:

Smart Timing and Operation According to Tariff

As is known, electricity tariffs change during the day. While electricity is more expensive during daytime hours, it is 40-50% cheaper during nighttime hours. Thus, with the esular wireless well control system, you can automatically operate your pump on the night tariff. Sample Calculation: If a 15 kW pump works 8 hours a day, monthly consumption is approximately 3.600 kWh. At the daytime tariff (approximately 3 TL/kWh), this means a cost of 10.800 TL. When you carry out the same consumption at the night tariff (approximately 1.5 TL/kWh), the cost drops to 5.400 TL. A monthly gain of 5.400 TL with well pump electricity savings!

Optimized Operation with Pressure Control

On the other hand, pressure sensors in automatic systems constantly monitor the pressure in the irrigation line. Therefore, the pump only works with the necessary power and no unnecessary load occurs. Thanks to the high-precision pressure sensor integration in the Esular system:

• The system primarily monitors the pressure instantaneously
• Then, it automatically stops the pump in case of excessive pressure
• Likewise, it sends a leak warning when low pressure is detected
• As a result, it ensures operation at optimum pressure levels

Therefore, thanks to pressure control, you can achieve energy savings of 15-20%.

Consumption Tracking with Water Meter

On the other hand, the water meter integration in the system shows how much water you use instantaneously. In this way:

• First, you notice unnecessary water and energy consumption
• Then, you detect leak situations early
• Additionally, you optimize your irrigation plans
• Finally, you can compare energy consumption with irrigation efficiency

Dry Running Protection

In addition to this, when the well water level drops, the pump stops automatically. Therefore, this feature both protects your pump and prevents energy from being wasted. In the Esular system, you provide this protection automatically with level sensors.

Real Application Example: MAREM Fruit Research Institute

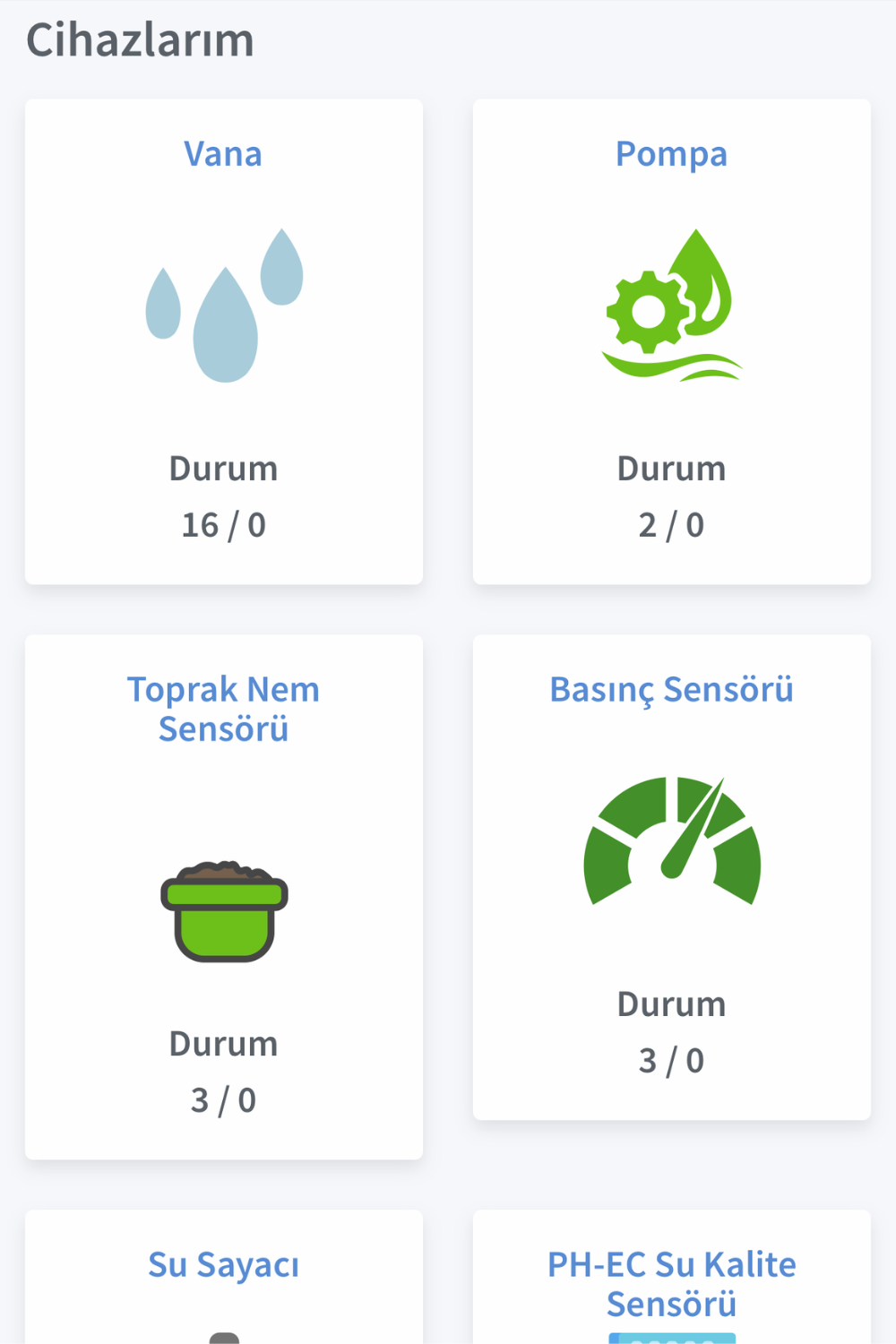

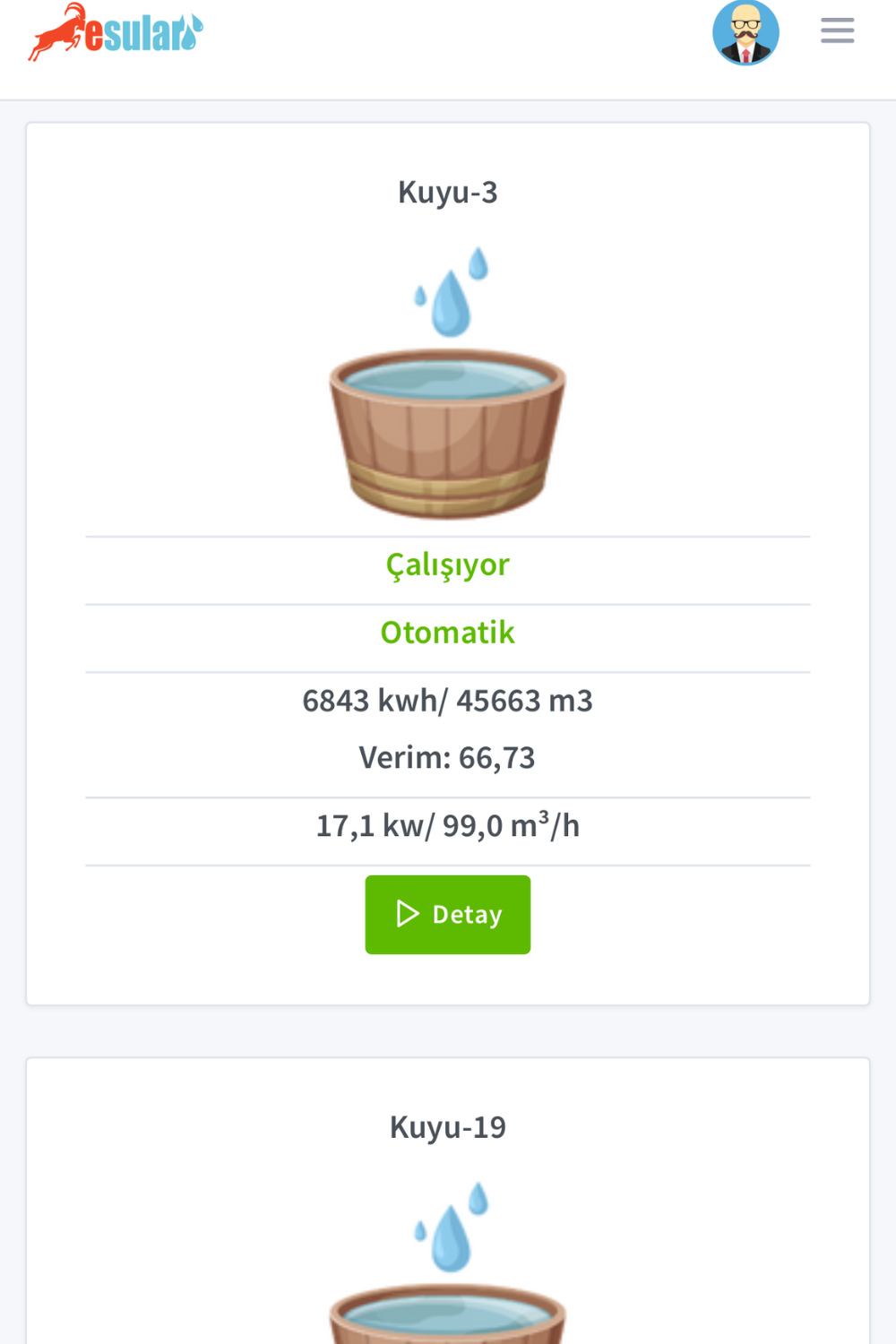

The esular automatic irrigation system implemented at the MAREM Institute revealed striking results in energy efficiency. Namely: Energy Savings: First of all, a visible reduction in electricity bills was achieved thanks to the pumps only working when necessary and pressure control. They optimized energy costs, especially with the feature of taking advantage of the night tariff. Instant Monitoring: In addition to this, they monitor the operating status of the pumps, energy consumption, and water use instantaneously via the mobile application. Automatic Timing: Finally, they created different time plans for each irrigation zone. Thus, the system automatically activates the pump at the designated hours and prevents unnecessary operation.

Esular Wireless System for Well Pump Electricity Savings

The esular wireless irrigation solution, which provides remote well and pump control in agricultural lands and gardens, is creating a revolution in well pump electricity savings. Key features of the system:

Key Features of the System:

Remote Access with GSM Technology: First, you can control pumps and valves from anywhere in the world via the mobile application or web interface. Pressure Sensor and Water Meter Integration: In addition to this, you achieve pump protection and water savings by monitoring the flow and pressure values of your well instantaneously. Completely Wireless Structure: Additionally, it offers fast and easy installation possibilities that do not require infrastructure for valve control and sensor data collection. Solar Power Option: Finally, it ensures uninterrupted operation even in wells and agricultural areas without electricity infrastructure.

How is the System Installed and Used?

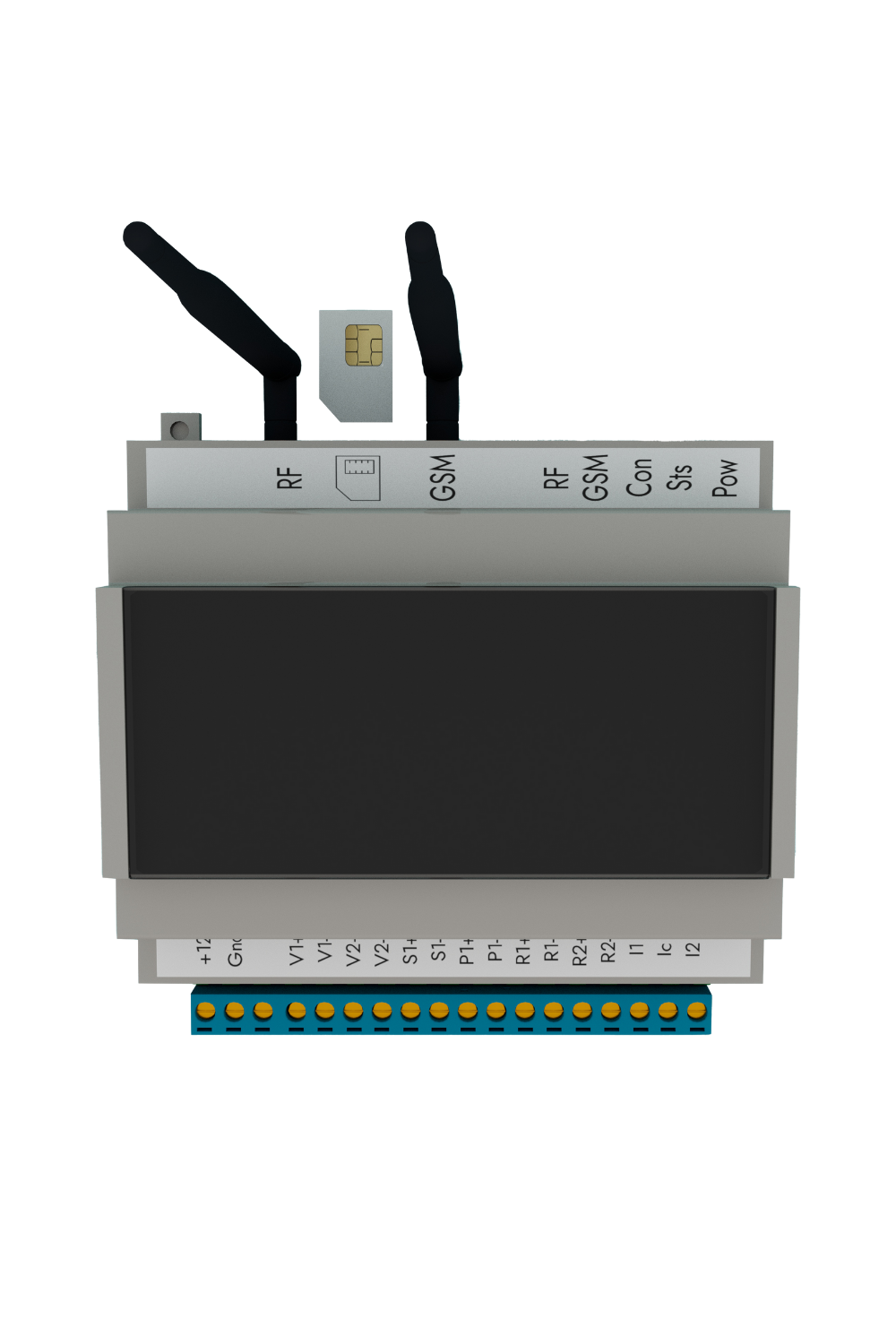

The installation of the Esular system is quite simple and fast. Namely: 1. Placement of the Central Unit: First, you mount the GSM-enabled F Series control unit next to your pump or at a suitable point. Thanks to the wireless structure, it does not require complex wiring. 2. Sensor Connections: Then, you integrate the pressure sensor and water meter (optional) into the system. Since these sensors also work wirelessly, installation is very practical. 3. Mobile Application Setup: Afterwards, you download the free esular mobile application and register your system. Thus, you can start controlling your pump remotely within a few minutes. 4. Timing and Scenarios: Finally, you easily set your irrigation hours, night tariff usage, and other automations via the application.

Well Pump Electricity Savings Calculation: Investment Analysis

How long does it take for the investment you make for well pump electricity savings to pay for itself? Let's calculate for an average agricultural enterprise: Current Situation:

• Pump power: 15 kW
• Daily operation: 8 hours
• Monthly electricity consumption: 3.600 kWh
• Average electricity cost: 3 TL/kWh (daytime tariff)
• Monthly electricity bill: 10.800 TL

With Esular System:

• Night tariff usage (50% savings): 5.400 TL
• Pressure optimization (15% savings): 810 TL
• Prevention of unnecessary operation (10% savings): 540 TL
• Total monthly savings: 6.750 TL
• Annual savings (6-month irrigation season): 40.500 TL

F Series FMin Model Payback period of the investment: Approximately 2 months! At the end of the first irrigation season, the system pays for itself and continues to provide savings for subsequent years.

System Expansion with Other Esular Products

To make your well control system even more efficient, you can also integrate other products in the esular ecosystem: Wireless Smart Valve Control Unit: Manage your irrigation valves automatically and apply a separate irrigation plan to each zone. With its solar-powered and completely wireless structure, energy cost is zero. Hydrostatic Level Sensor: Monitor the water level of your wells, tanks, and pools instantaneously. Achieve water and energy savings with automatic fill control. Wireless Pressure Sensor: Provide leak detection and pump protection by monitoring pressure changes in the system instantaneously. Water Meter Integration: Track water consumption in detail and optimize your costs.

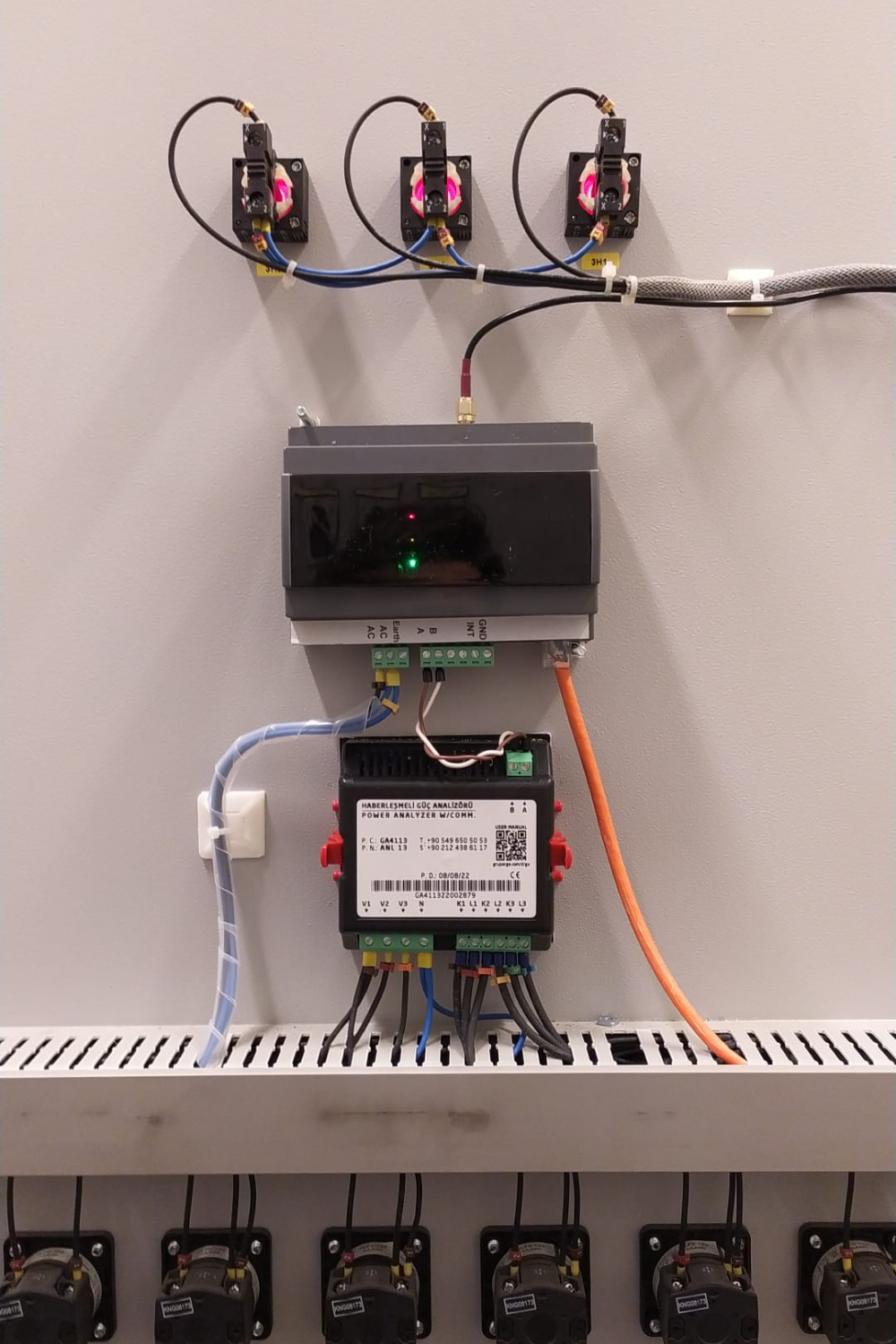

F Series Model Options and Prices

Esular wireless well control systems are offered in various models according to different needs: FMin Model: Ideal entry-level model for basic well and pump control. Review Product FEx Model: Extended model with advanced features. Review Product FMax-Short Model: Top-level model offering maximum features and control possibilities. Review Product

Conclusion: Increase Your Profits with Well Pump Electricity Savings

The most effective way to achieve well pump electricity savings is to switch to automatic control systems. With the Esular Wireless Well and Pump Control System:

• You achieve electricity savings of 30-50%
• You control your pump from anywhere with the mobile application
• You automatically take advantage of the night tariff
• You extend pump life and prevent malfunctions
• You track your water and energy consumption in detail

The well pump electricity savings system is easy to install, practical to use, and the return on investment is very fast. Now is the right time to get rid of the burden of your electricity bills!

---

Note: The prices stated in this article are the list prices at the date of publication. Please visit product pages or contact us for current prices and campaigns.
