Wireless Irrigation Valve

General Features:
1. You can open and close your hydraulic valves up to 15km with battery power.
2. It can read every 5 minutes at certain intervals with the internal battery, and continuously with external and solar panels.
3. It has a 9V-24V 250mA external power supply input.
4. It checks center information every 5 minutes while in battery mode.
5. There is no data loss in case of power cycling.
6. The device has EU-868 MHz frequency band and 14db output power with Lora modulation and LoraWan protocol.
7. It has an external antenna connection.
8. Configuration processes can be performed through the system.
9. Energy status, operating status, and alarm status can be monitored with the LEDs on it.
10. When the device is not sending data, it works in Ultra Low Power mode and does not consume unnecessary energy.

Application Areas:
1. Remote on/off
2. Valve opening/closing
3. AMR systems
4. Automation systems
5. Scada systems
6. Remote control systems
7. Agricultural irrigation systems

Technical Specifications:
1. Frequency Range: 433/490 MHz or 868 / 915 MHz(Customizable:137~1020MHz )
2. Sensitivity up to -139dBm @Lora
3. EU433,CN470-510,CN779-787,EU863-870,US902-928,AU915-928,AS923,KR920-923
4. Maximum output power: 20 dBm
5. 13mA@receiver mode
6. Sleep current <200 nA 7. Data transfer rate: @FSK,1.2-300 Kbps 8. @Lora TM, 0.018-37.5 Kbps 9. Lora TM, FSK, GFSK & OOK Modulation mode 10. Built-in ESD Protection 11. 127 dB Dynamic Range RSSI 12. Packet engine up to 256 bytes with FIFO and CRC 13. Hopping frequency 14. Built-in temperature sensor and low battery indicator 15. Excellent blocking immunity 16. Operating Temperature Range：-40 ~ + 85 °C 17. Low Power Current 4uA 18. Max TX Current 120mA

Box Contents:

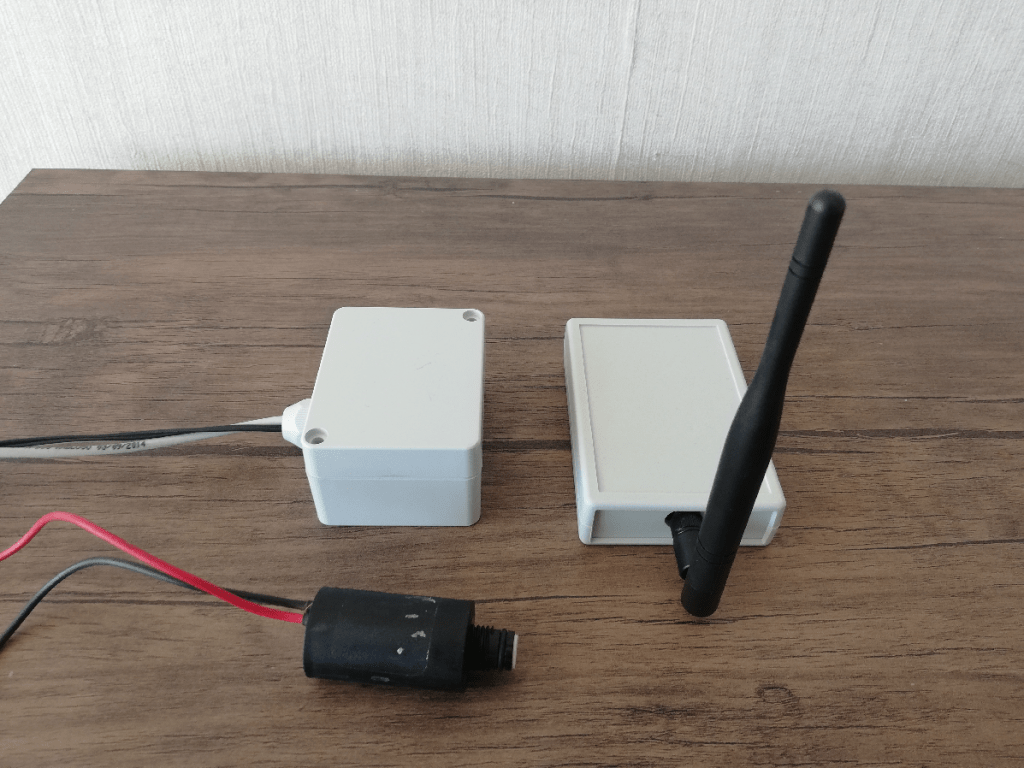

1. Lora Battery Powered 9V Solenoid Control
2. RF Antenna 1 piece
3. Extended RF Antenna (optional) 1 piece
4. 3V6 Lithium Battery (Optional) 1 piece
