What is Our Smart Irrigation Solution?
What is a smart irrigation solution?, esular smart irrigation solutions are irrigation solutions consisting of sensors and different types of feedback systems with practical use in large irrigation areas, agricultural regions, and landscape areas. Our system, which includes many operations such as valve control systems, fertilization, sensor data collection, and pump control, allows you to easily irrigate at many different points.
What Can You Do with a Smart Irrigation System?
- Sectional irrigation with multi-point valve control with wireless valve control,
- Valve control without the need to pull KMs of cables,
- More practical and easy installation,
- Simultaneous control of pump and fertilization systems,
- Irrigation quality tracking with soil moisture measurement,
- Automatic filter cleaning,
- Irrigation and irrigation quality measurement with pressure sensor,

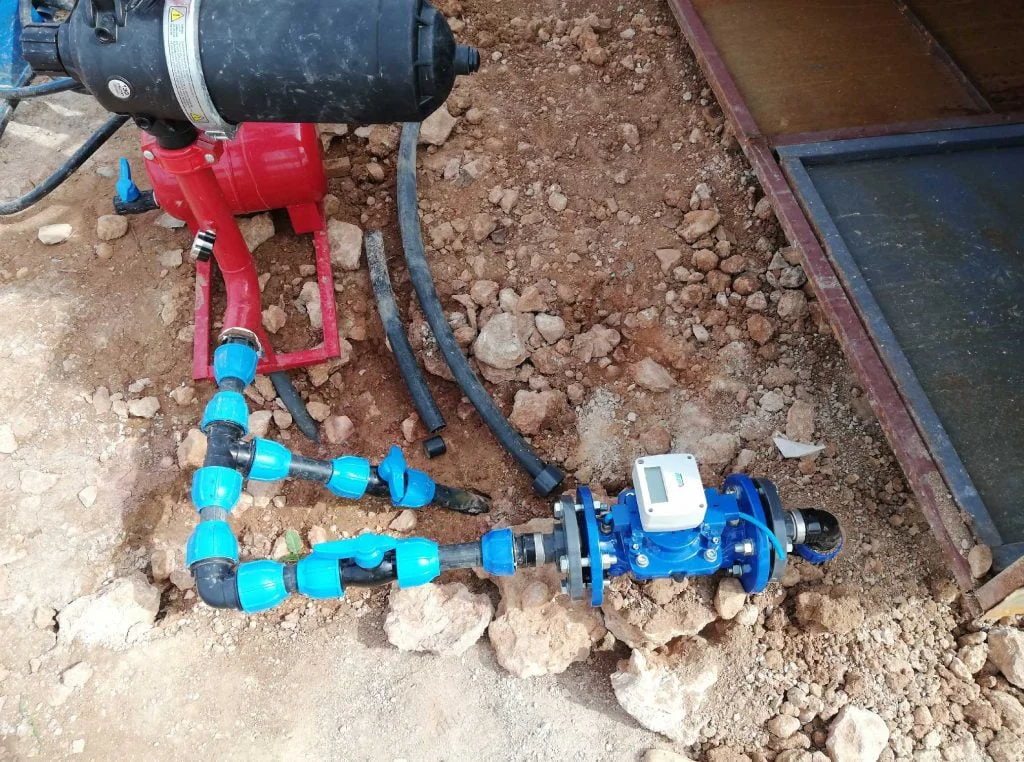

- Loss, leakage, burst, and irrigation quality measurement with water meter,
- Monitoring with different types of sensors.
- Pool filling and management,
- Control, management, and monitoring from anywhere with Web and Mobile application,
- Instant notification in cases such as power outage, water outage, irrigation problem, valve problem, loss, burst, and inability to irrigate,
- Suitability for use everywhere and in every way with its practical and durable features,
- 24/7 continuous active support.

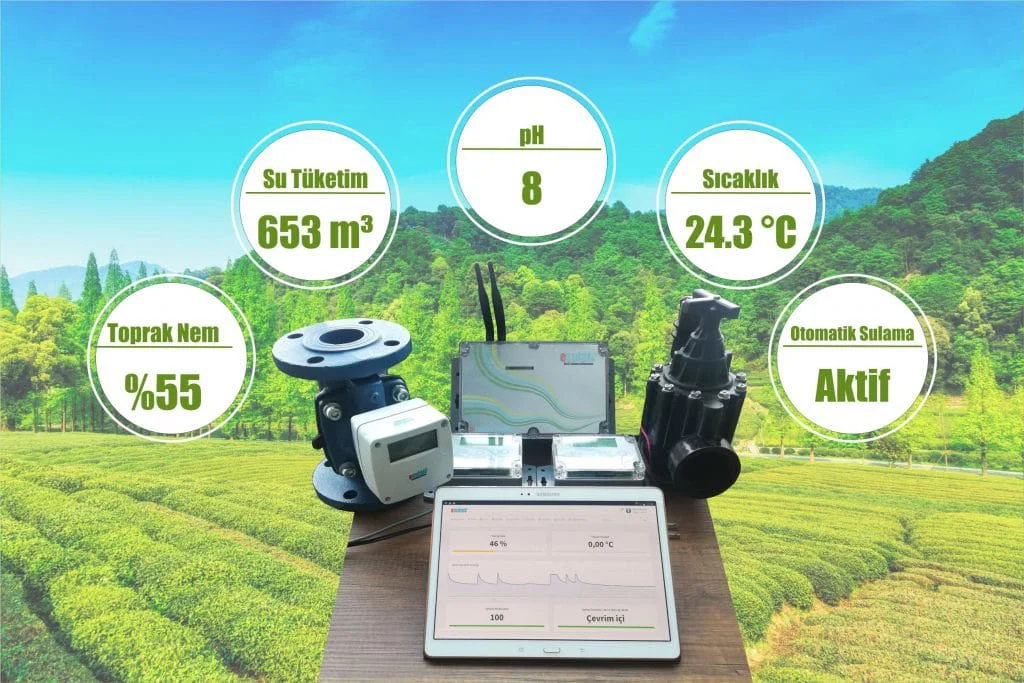

What are the Components of a Smart Irrigation System?
A smart irrigation system basically consists of pump control, valve control, pressure sensors, water meter, soil moisture sensor, and different types of sensors.
Generally, smart irrigation system components are:
- Smart Irrigation Valve-Wireless Battery Powered Irrigation Valve
- Pump Control System
- Fertilization Control
- Wireless Battery Powered Soil Moisture Sensor
- Wireless Battery Powered Pressure Sensor
- Fertilization Control System
- Remote Access and Control Unit
- Other Sensor and Control Units
Smart Irrigation Valve-Wireless Battery Powered Irrigation Valve

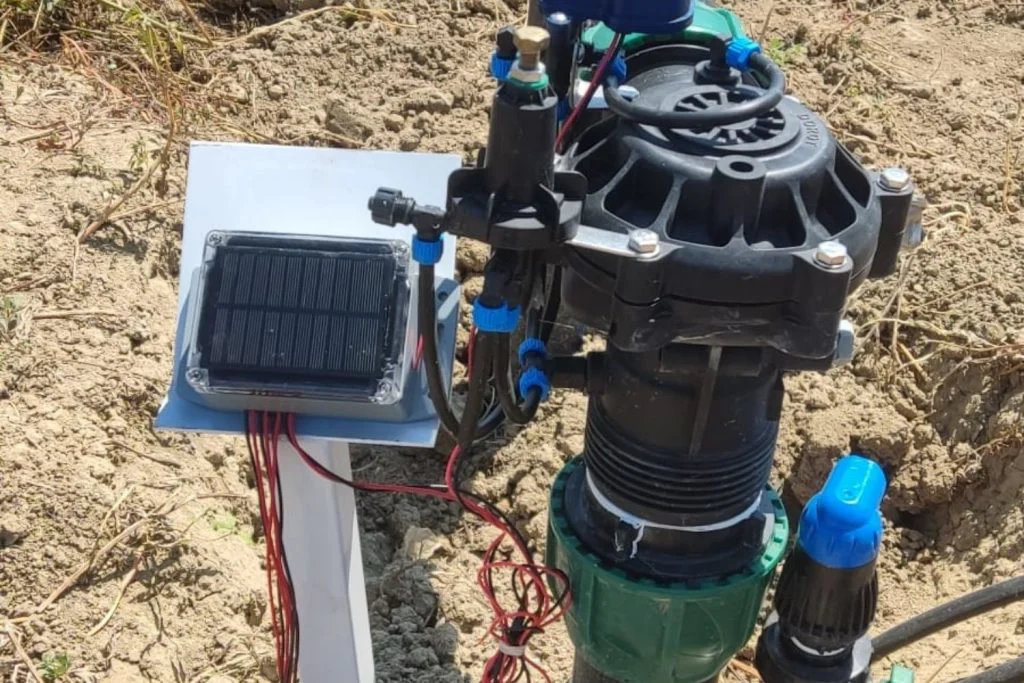

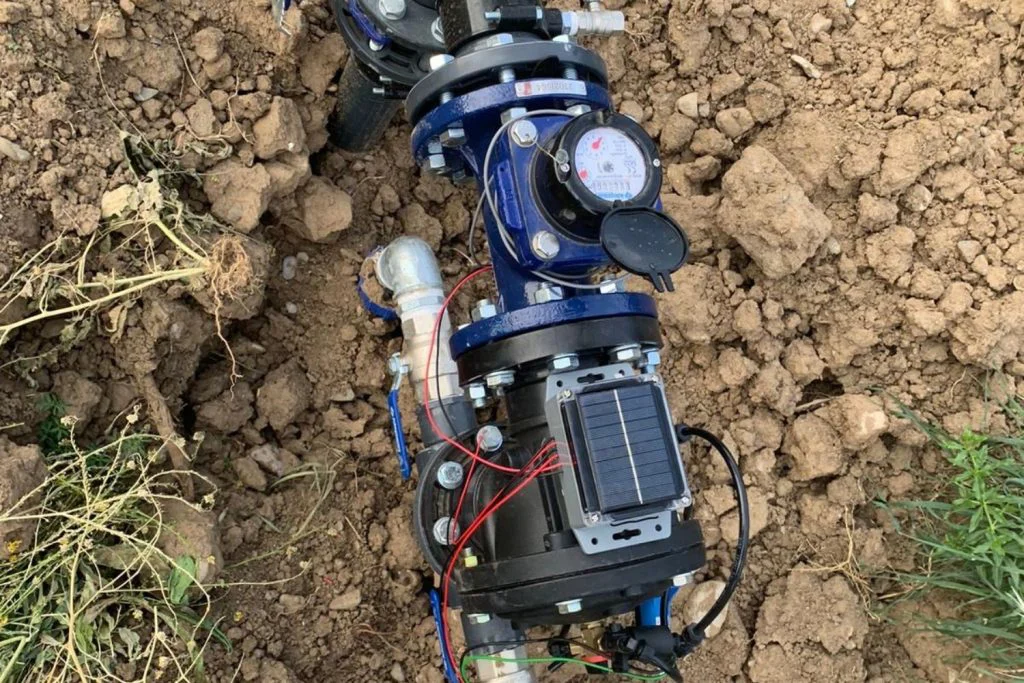

Our smart irrigation valve, or in other words, our wireless battery-powered irrigation valve, as the name suggests, can work without the need for irrigation cabling and external energy. With our system, which can provide control up to 2km wirelessly in open field conditions, we can provide irrigation without the need for cabling.
We use 2 types of valves. We can carry out the control of cast hydraulic valves with pivot motors and hydraulic irrigation valves with PVC latch solenoids wirelessly and with batteries. Our valves, which we can control with a single battery for a distance of 3 km and up to 5 years, have a low pressure drop. We perform control with valves in a wide range between 15mm(DN15)-1000mm(DN1000).
General features of smart irrigation valve:
- Wireless control,
- Completely battery operated,
- Requires no wiring,
- Wireless control up to 2 km
- Battery life close to 5 years
- Practical installation and use
- Manual override control
- Control via screen
- Very low pressure drop

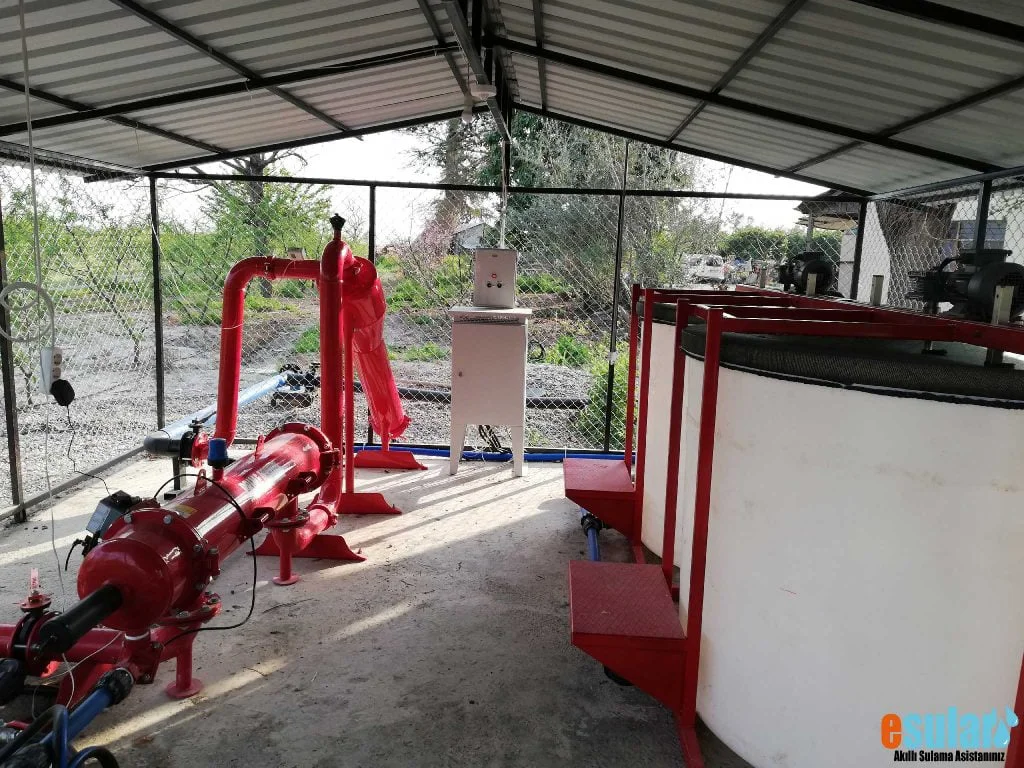

Pump Control System

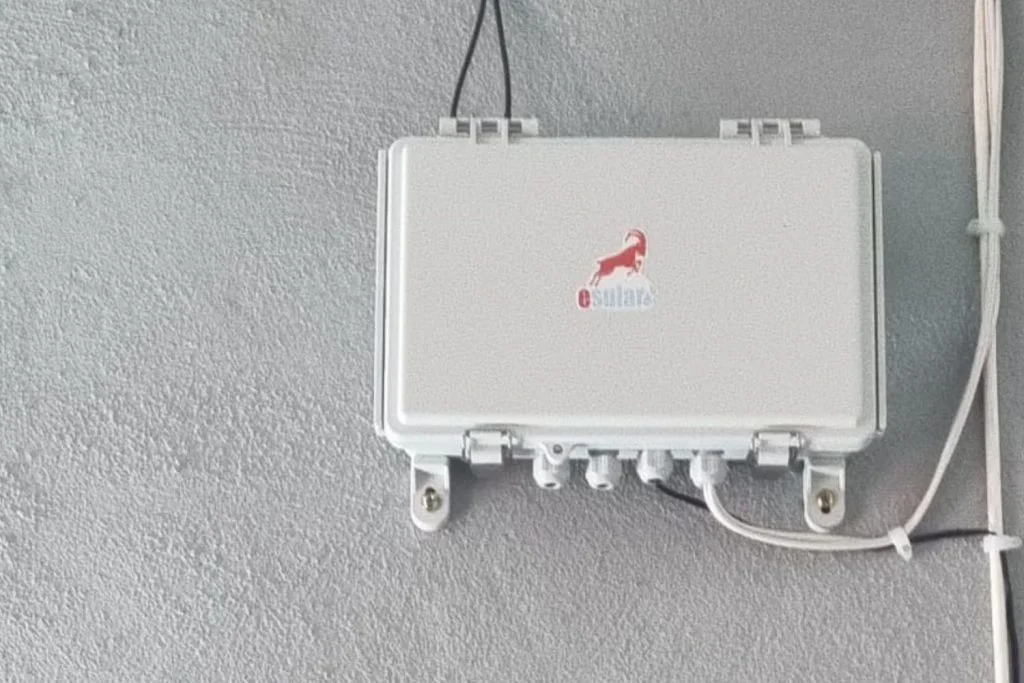

It can be controlled with different types of pumps and different types of sources in field conditions. Our central control card, which we have prepared, can automatically perform irrigation by controlling different numbers of pumps according to the status of the valves and the need. Our pump control unit can control both active inverter systems according to pressure and classic contactor pumps. In our device, which also has RS485 and Modbus output, if desired, pump speed can be controlled according to pressure to provide the best control without damaging the irrigation line.
We have 2 different pump control systems, wired and wireless. Wired pump control systems are the system we mostly prefer and provide more secure control. Generally, in this type of pump control, we perform pump control with our central control unit without using external equipment. However, in systems where there are more than one water source and more than one pump in field conditions, if the pumps are fed with separate solar panels or energy, in such cases, we can use our wireless pump control systems where we can control the pumps wirelessly up to 2km. If the distance between the pumps is even greater, in this case, we carry out control by connecting our GSM systems to each other.
Which Type of Pump Systems Can We Control?
- Direct control of single-phase pumps up to 220V 5 amperes
- 3-phase contactor pumps
- Inverter on-off pumps
- Inverter stage controlled pump systems
- Centrifugal pumps
- Submersible pumps
- Inverters and pumps working with solar panels
Pump Control Unit General Features:
- Fully compatible with different types of inverters and pumps.
- Can control multiple pumps at the same time
- Wireless control option up to 2 Km
- Protection against excessive pressure with pressure input
- Can automatically adjust pressure with active pump control via Inverter and Modbus.
- Provides practical use via web and mobile application thanks to GSM connection.
- Sends warnings, SMS, and notifications in cases of power outage, malfunction, excessive pressure, and pressure loss.
- Provides practical use.
Fertilization Control
Active fertilization control is also included within our smart irrigation system. We can carry out the control of both classic pressure-controlled fertilization systems and fertilization stations where mixing and dosing pumps are located.
The most important feature of our fertilization control systems is that they are remotely controlled and have practical use. You can easily apply your liquid fertilizers with our system, which has an automatic structure.
Soil Moisture Measurement

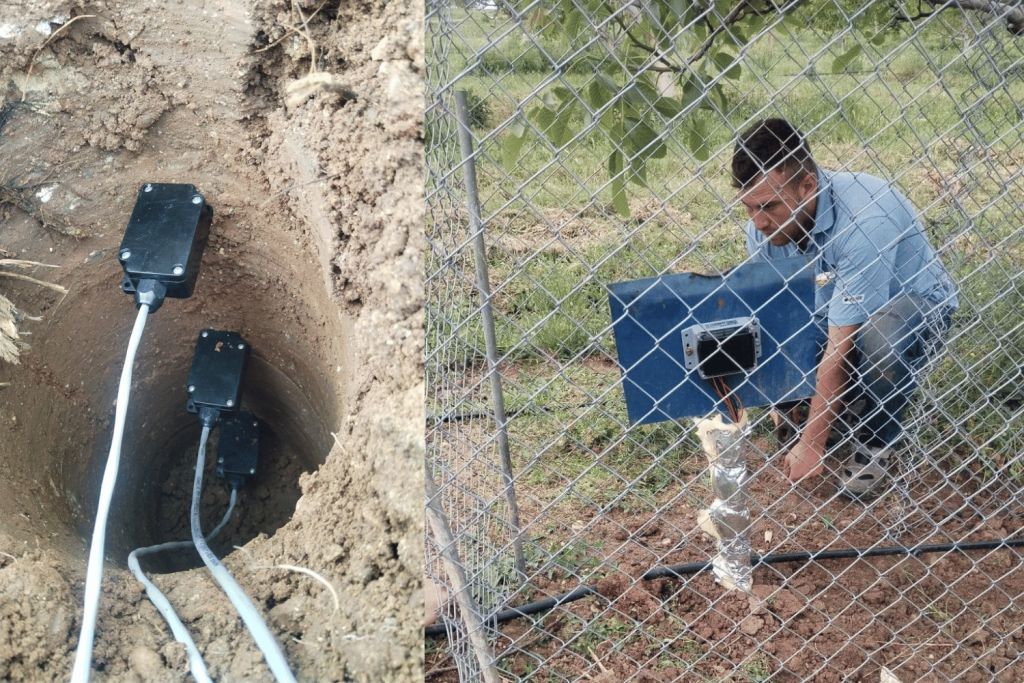

Soil moisture measurement is important especially to check whether irrigation is done effectively and correctly. With our underground soil moisture sensor, which works wirelessly and with batteries, included in our smart irrigation system, you can easily carry out practical irrigation control from multiple points.
With our soil moisture sensor, you can both ensure the control of irrigation quality and save a significant amount of water and energy by preventing unnecessary irrigation.
Our Areas of Activity
esular smart automatic irrigation system application areas
In places where water resources are scarce, we reduce your costs with drip irrigation automation. Thanks to wireless controllable hydraulic valves, water distribution is provided equally to every point of the field and all are controlled from a single point.
We make irrigation management fully automatic in modern greenhouses to keep greenhouse production at the desired level, improve product quality, and keep pH balance under control.
We enable you to use and manage the world's most valuable resource in the most efficient way in all your agricultural lands without the need for cabling and external power supply. Whether you determine your irrigation scenario or perform fully automatic irrigation.
We provide more efficient and effective irrigation by making valves smart in landscape irrigation. With remotely controllable valves and remotely updated scenarios, all control is in your hands.
By controlling flow and pressure values on golf and football fields, homogeneous irrigation is ensured. All valves and pumps can be controlled remotely without pulling cables.
Smart Cities
In smart city applications, we ensure that irrigation areas are irrigated on time and as desired with wireless sensors that can operate with 10+ year internal batteries. No more sprinklers irrigating when it rains.
