Most farmers switching to drip irrigation systems focus only on installation costs. However, there are many items that do not appear in the real cost table. In this article, we will examine the hidden costs in drip irrigation systems and how you can achieve great savings with instant water meter tracking in detail.
Hidden Costs in Drip Irrigation Systems
The installation cost of a drip irrigation system varies between 3,500 TL and 9,000 TL per decare depending on the size of the area. However, the real problem is the costs that start after installation and which most producers are unaware of.
1. Water Leaks and Seepage: The Silent Thief
The main reasons for water losses in drip irrigation systems are:
- Microscopic leaks at pipe connection points
- Puncturing of underground pipes by animals
- Pipe wear caused by UV rays
- Connections bursting due to incorrect pressure settings
- Valves not closing completely
- Inadequate maintenance of filter systems
Real data: A producer experienced 30% more water consumption than normal in one season due to undetected small leaks. This means an additional annual cost of approximately 4,500-6,000 TL for a 10-decare area.
2. Clogging Problems and Maintenance Costs
The biggest problem with drip irrigation systems is dripper clogging. The fact that the water used contains lime, sulfur, algae, and other particles causes accumulation in the system over time.
| Cause of Clogging | Frequency | Average Maintenance Cost |
|---|---|---|
| Calcification and HCl application | 2-3 times a year | 800 – 1,500 TL |
| Filter cleaning and renewal | 4-6 times a year | 500 – 1,200 TL |
| Pipe renewal (partial damage) | Once every 2-3 years | 2,500 – 5,000 TL |
| Labor and regular control | Throughout the season | 3,000 – 6,000 TL |
| TOTAL ANNUAL COST | 6,800 – 13,700 TL | |
💡 Important Note: Using fully automatic filter systems can reduce maintenance costs due to clogging by 60-70%. Although the initial investment cost is high, it pays for itself within 2-3 years.
3. Non-Homogeneous Irrigation and Yield Losses
When a drip irrigation system is installed on sloped lands, some areas receive more water and others less due to pressure differences. In lands with a slope of more than 5%, drippers at higher elevations drip less water, while those at lower elevations operate with excessive pressure.
This situation leads to the following results:
- Water stress in some plants and over-irrigation in others
- Non-homogeneous product quality and low yield
- Imbalance and losses in fertilizer use
- Income decline (between 15-25% per decare) caused by product loss
- Soil erosion and salinization risks
Instant Water Meter Tracking: The Smart Solution
In modern agriculture, technology is of critical importance to reveal and take control of hidden costs. Smart water meters and remote monitoring systems come into play exactly at this point.
What Are Remote Reading Water Meter Systems?

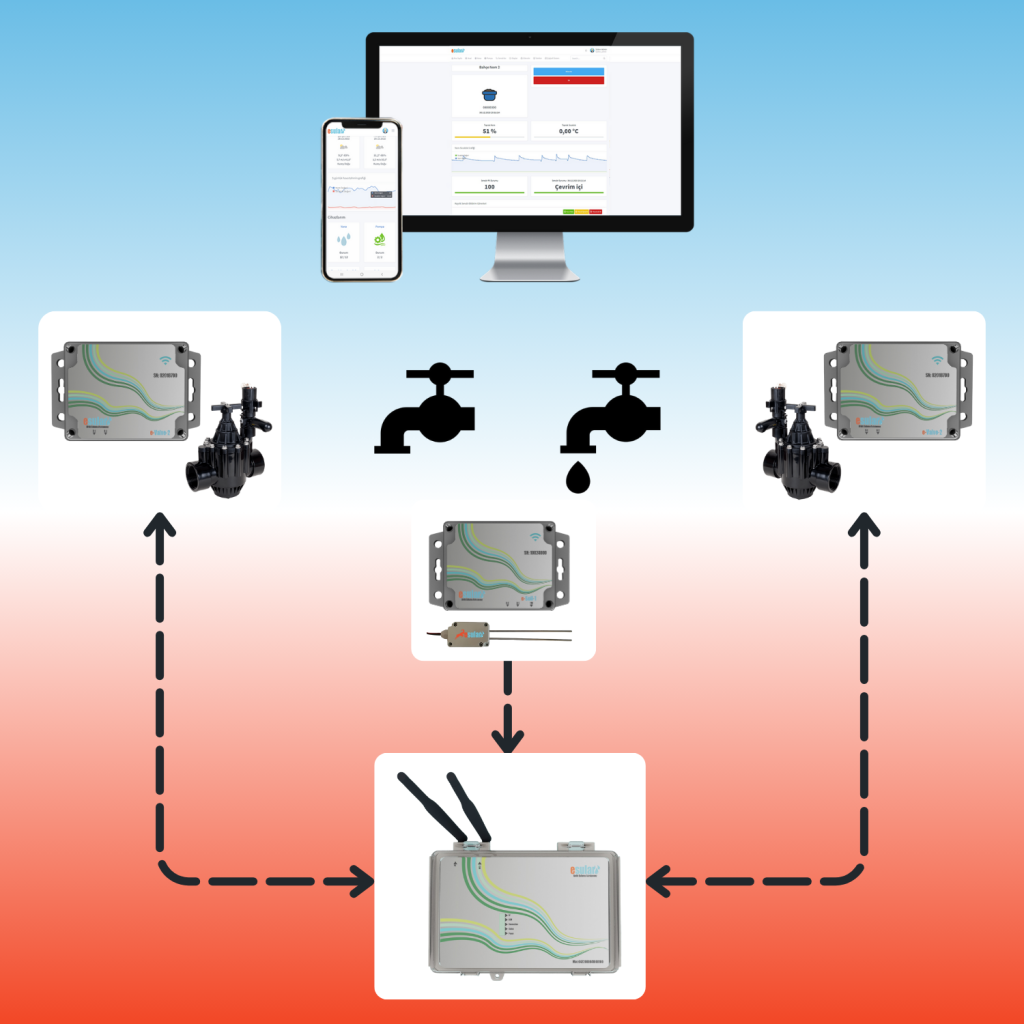

Ultrasonic or electronic water meters precisely measure the flow and amount of water passing through them and transmit this data wirelessly (GSM, LoRa, Wi-Fi) to a central system. With Esular smart irrigation systems, producers can, via smartphone or computer:
- ✅ Monitor instant water consumption and flow values
- ✅ Receive automatic alarms in case of abnormal consumption
- ✅ Adjust irrigation scenarios and programs remotely
- ✅ Analyze historical data and make future plans
- ✅ Automatically stop the system in case of a water leak
- ✅ Instantly detect pressure and flow abnormalities
Benefits of Smart Water Meter Systems
💧 Early Detection of Water Leaks
When the system detects a water flow above normal, it sends an instant warning. In this way, a small leak can be intervened before it becomes a major disaster. In cases of excessive water leaks, sudden bursts, and if the flow is not within the appropriate range, the system automatically stops irrigation and provides information.
Savings Potential: 3,000 – 8,000 TL annually
📊 Data Analysis and Optimization
By analyzing past irrigation data, you can see which parcels consumed how much water and optimize your irrigation strategy. Esular cloud-based software and artificial intelligence-supported analyses provide better management.
Savings Potential: 2,500 – 6,000 TL annually
⏰ Automatic Irrigation Control
When the water amount you have determined is reached, the system automatically stops irrigation. Excessive irrigation and water waste are completely eliminated. It works integrated with soil moisture sensors to irrigate only when necessary.
Savings Potential: 4,000 – 9,000 TL annually
Esular Smart Irrigation Products
Esular is Turkey's leading manufacturer of smart irrigation technologies. It provides digital transformation in agriculture with its wireless and energy-independent solutions.

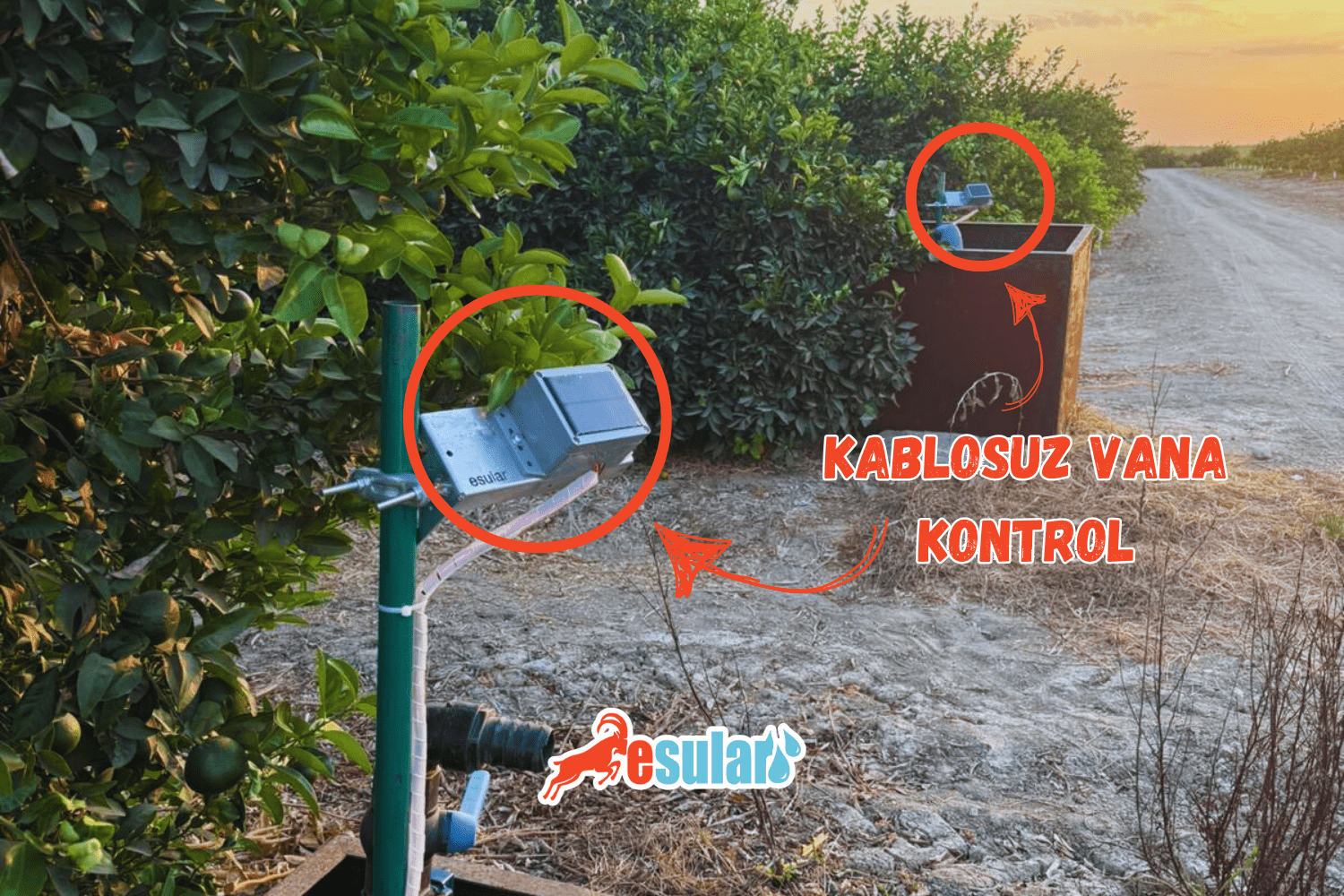

1. Wireless Smart Valve Control Unit
Features:
- Completely wireless structure – no cables required
- Self-solar paneled – energy independent
- Remote control via GSM/LoRa
- 1-12 valve output options
- Easy management with mobile application
- Water meter and sensor integration

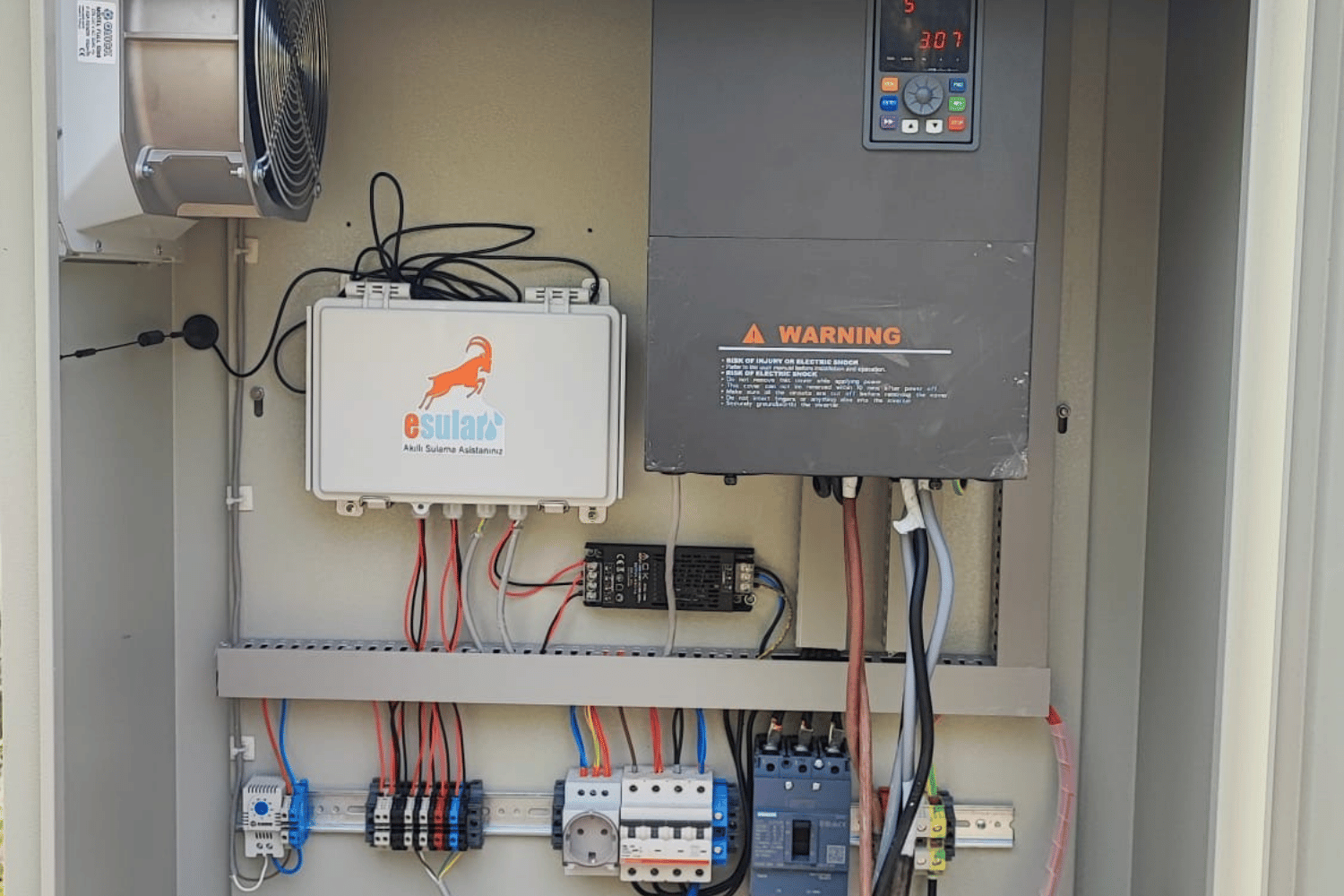

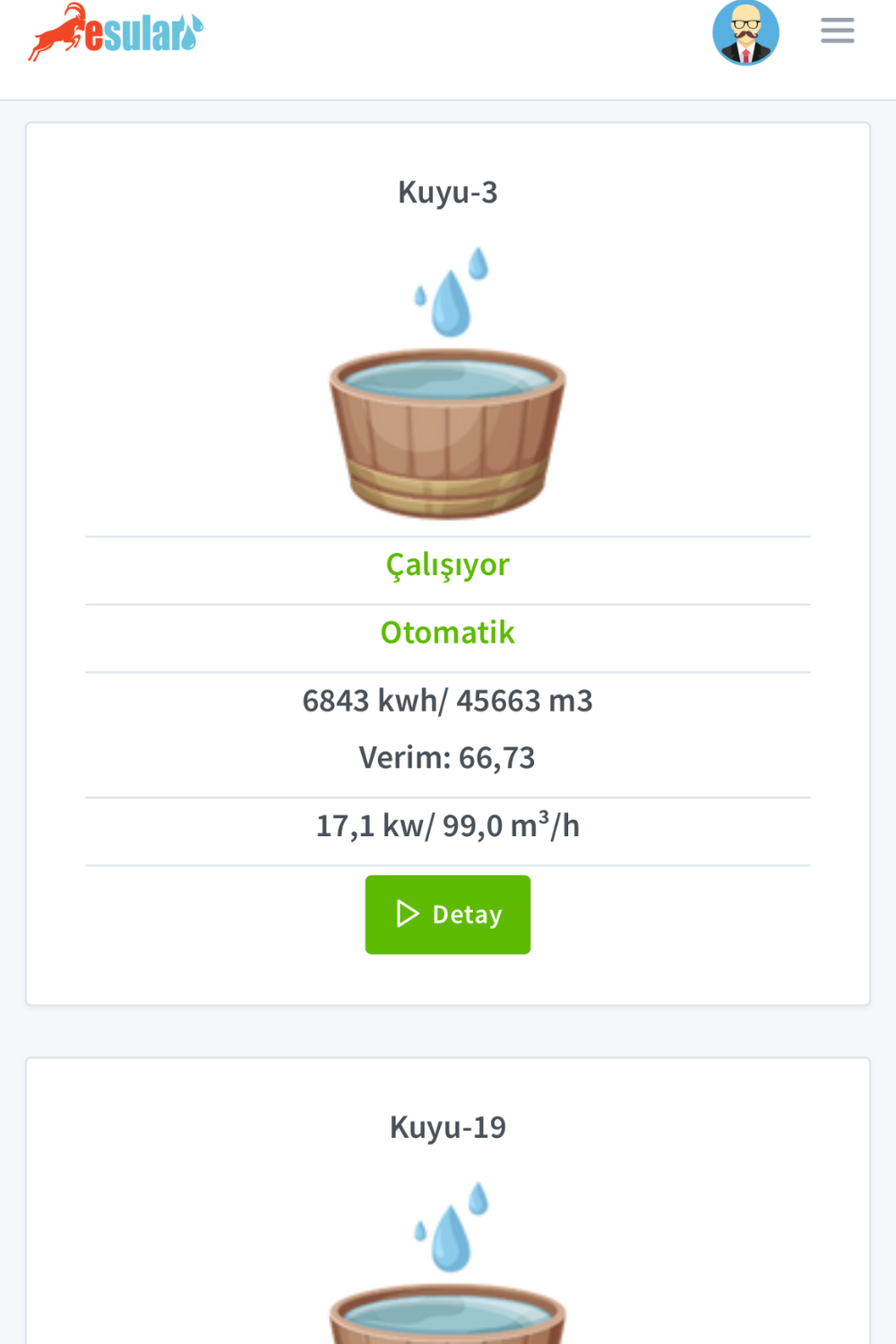

2. GSM Well and Pump Control System
Features:
- Remote pump on/off
- Pressure and water meter tracking
- Automatic alarm system
- Night tariff usage
- Solar panel support
Points to Consider When Installing the System
Correct Water Meter and System Selection
When choosing a system, be sure to evaluate the following factors:
- Flow capacity: It must be able to handle the maximum water flow in your system
- Connection diameter: It must be suitable for your main pipe diameter
- Water quality: Ultrasonic meters should be preferred in dirty or limy water
- Communication protocol: Evaluate GSM, LoRa, or Wi-Fi options
- Energy source: Solar-powered systems zero energy costs
- Warranty and support: Local technical service support is a must
Installation and Integration Process
Installation Steps:
- Field analysis: Water source, pressure, slope, and soil structure should be examined
- System design: Valve and meter locations should be determined
- Wireless infrastructure: Signal quality should be tested
- Installation: Must be done by a professional team
- Calibration: All components should be tested and optimized
- Training: Mobile application usage should be taught
Frequently Asked Questions
Are smart water meter systems affected by power outages?
Esular systems operate with solar panels and battery backup. In case of a power outage, the system continues to operate without interruption. Systems with LoRa technology do not require electricity as they already run on batteries.
Can it be used in areas without internet?
Yes. GSM systems work with the mobile network, internet is not required. LoRa systems create their own wireless network and do not need any infrastructure.
How long does the installation take?
For a medium-scale system (10-20 decares), installation takes 1-2 days. Professional installation is performed by the Esular team and the system is delivered ready for use.
Can it be integrated into my existing drip irrigation system?
Yes, Esular smart systems can be easily integrated into your existing drip irrigation infrastructure. There is no need to make a major change to the system.
Conclusion and Recommendations
Drip irrigation systems have become an indispensable part of modern agriculture. However, smart monitoring technologies are essential to benefit from the full potential of the system and eliminate hidden costs.
What You Will Gain with Esular Smart Irrigation:
- ✅ Reducing water losses by up to 70%
- ✅ Cutting maintenance costs in half
- ✅ Increasing product yield by 20-30%
- ✅ Time and labor savings (up to 60%)
- ✅ Environmentally friendly, sustainable agriculture
- ✅ 24/7 control and security
- ✅ Professional management and reporting
- ✅ Return on investment in 1.5-2 years
Are You Ready to Reduce Your Drip Irrigation Costs?
Stop water losses and save with Esular smart irrigation systems!
Examine the Smart Valve System
Examine the Pump Control System
Remember: The Ministry of Agriculture and Forestry offers various supports and grants in agriculture. You can benefit from supports by getting information from provincial agriculture directorates.
Modern agriculture is smart agriculture. In our world where water resources are gradually decreasing, every drop of water is precious. Increase your own profit and leave a livable world for future generations with Esular smart systems.
This article is for informational purposes regarding drip irrigation systems and smart water management. Product prices may change according to market conditions. We recommend that you consult with Esular authorized dealers before making your investment decisions.
